Converters：
Frequency converters for every drive application
With SINAMICS frequency converters, you can address every application and operate synchronous or induction motors. Our drives with integrated safety can be centrally installed in control cabinets, mounted on walls or decentrally. They operate with energy-saving performance, whether for pumping, ventilating, moving, positioning, processing or machining

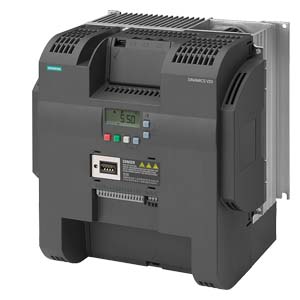

The compact basic performance converter
The compact SINAMICS V20 is the frequency converter for simple motion sequences. It is characterized by its short commissioning times, easy handling, and energy-saving functions. The converter with its nine sizes covers the power range from 0.12 kW to 30 kW.
Highlights
• The perfect solution for basic applications
• Easy to install
• Easy to use
Applications
Pumping/Ventilating/ Compressing
Moving
Processing
Simple
Simple installation - push-through and wall mounting - side-by-side possible for both versions
Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options
Mechanical data
Mounting position Through-hole mounting / wall mounting / side-by-side mounting Degree of protection IP20 / UL open type Frame size FSE Net weight 6.24 kg (13.76 lb) Dimensions Width 245.0 mm (9.65 in) Height 264.5 mm (10.41 in) Depth 209.0 mm (8.23 in)
