6ES7314-6EH04-4AB1 | Siemens | SIMATIC S7-300 CPU

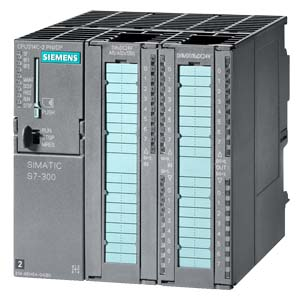

The SIMATIC S7-300 CPU 314C-2PN/DP with the article number 6ES7314-6EH04-4AB1 is a compact CPU with a range of features and applications. Here are its main features and areas of application:

Main Features:

1. Memory: It comes with 192 KBytes of working memory.

2. Digital Inputs/Outputs: It has 24 digital inputs (DI) and 16 digital outputs (DO).

3. Analog Inputs/Outputs: It includes 4 analog inputs (AI) and 2 analog outputs (AO).

4. Special Functions: It supports 1 Pt100 temperature sensor and has 4 fast counters (60 kHz).

5. Communication: It features 1 MPI/DP interface with a speed of 12 Mbit/s and 2 Ethernet PROFINET interfaces with a 2-port switch.

6. Power Supply: It has an integrated 24V DC power supply.

7. Front Connectors: It requires front connectors with 2 x 40 pins.

8. Memory Card: It necessitates a micro memory card.

9. Processing Times: The CPU processing times are typical for bit operations at 0.06µs, word operations at 0.12µs, fixed point arithmetic at 0.16µs, and floating point arithmetic at 0.59µs.

10. Programmable Logic: It supports programming with STEP 7 V5.5 or higher with HSP191.

Applications:

1. Industrial Automation: It is widely used in industrial automation for controlling various processes.

2. Manufacturing: It can be utilized in manufacturing plants for process control and monitoring.

3. Oil and Gas: It is suitable for applications in the oil and gas industry where robust control systems are required.

4. Water and Wastewater: It can be employed in water and wastewater treatment plants for process control.

5. Food and Beverage: It is applicable in the food and beverage industry for automation of processes.
